Types of Screwdrivers

The 14 Types of Screwdrivers You Should Know

If you are like many people, you probably have one or two different types of screwdrivers in your garage to accompany the many different types of saws and drills you have on hand.

In most cases, a basic Phillips head or flat head screwdriver will suit your needs just fine for every day DIY jobs.

However, if you regularly take apart or assemble furniture, electronics, bikes, or appliances, you may encounter uniquely shaped screws that don't budge with a traditional screwdriver.

Becoming familiar with more specialized screwdrivers will help you know what tools you should keep on hand for specific repair or assembly projects.

Read ahead to learn the 14 different types of screwdrivers you should know.

Screwdriver Mechanisms

Before we discuss the different screwdriver designs you should know, let's spend some time going over the different types of screwdriver mechanisms on the market today.

These mechanisms range from the basic manual model to the modern power screwdriver.

  • Manual screwdriver: A manual-type screwdriver is the most basic screwdriver body you can find in a tool shop. These screwdrivers typically have a wide handle and a narrower tip that you will need to turn manually to insert or unscrew a screw head.

  • Ratcheting screwdriver: Ratcheting-type screwdrivers are a step above manual ones in efficiency and ease of use. This type of screwdriver utilizes an internal mechanism that allows you to tighten a screw with a back-and-forth wrist motion rather than a full rotation of the driver. As a result, you will not need to lift and reposition the handle after each spin.

  • Torque screwdriver: Torque screwdrivers utilize unique internal components that create uniform, precise tension when tightening a screw.

  • Yankee screwdriver: The Yankee-type screwdriver uses a spring-loaded, internal ratcheting mechanism that allows you to tighten screws with a firm push of the handle.

  • Power screwdriver: Power screwdrivers utilize a power source, such as a battery or cord, to tighten screws with the push of a trigger. You can even purchase power tools that allow you to swap out the drill bits with screwdriver bits. The best power drills come with a wide range of drill and screwdriver bits for your convenience.

If you use screwdrivers regularly, you'll probably want to lose your manual screwdriver in favor of a more efficient version, such as a Yankee or power option.

However, if you only bring out your tool kit on occasion, a manual or ratcheting screwdriver with several different head replacements should suffice.

Common Screwdriver Types

The first five types of screwdrivers we will discuss are ones you may need for household projects, basic furniture building, and minor appliance repair.

These are the most common screwdriver types in America, and you probably already have one or two of them in your toolbox.

Flat Head

The flathead screwdriver—also known as the slotted, straight, or flat-blade driver—is one of the most popular screwdrivers in the U.S. This screwdriver features a wedge-shaped, wide, flat tip.

You can use a flat head screwdriver to insert or remove screws that have a linear notch in the screw head.

You can also use flatheads on Phillips-head screws in many cases—just insert the screwdriver in one of the cross slots in a Phillips-head screw. If you have a screw with a recess-type of notched head, the size of the screwdriver's tip will make a difference.

Flathead screws are standard in the woodworking and carpentry industries, as their appearance is less noticeable than other types of screws. Cabinet makers, for example, often keep slotted drivers on hand to apply finishing details to their cabinets.

You can also use flat head screwdrivers to pry open cans or chisel small areas, but you should make sure not to damage the blade if you try out one of these alternative uses.

If you only keep one screwdriver on hand, the flat-head is probably your wisest choice.

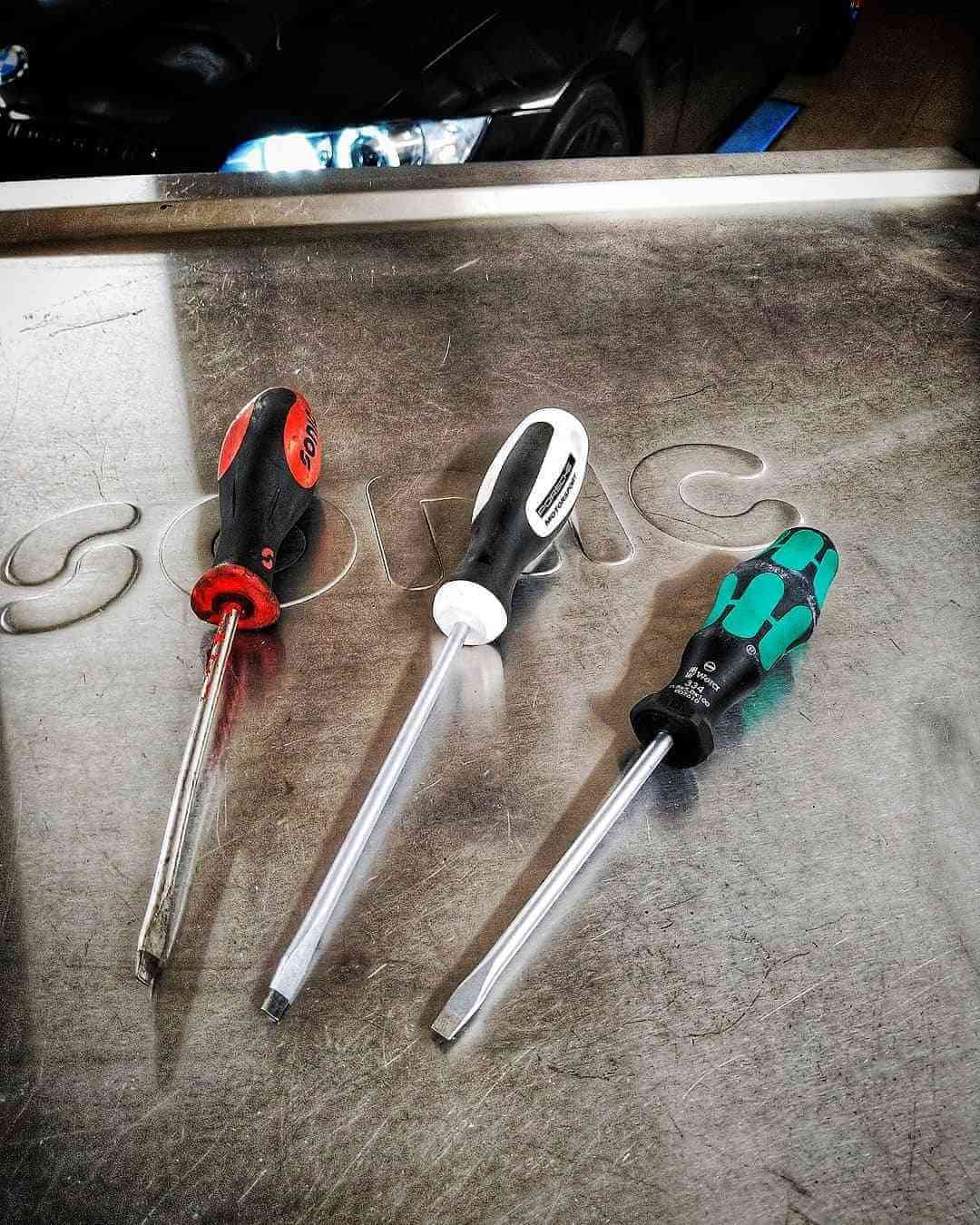

Flat Head

Photo Credit: Maxim Selyuk

Phillips Head

The Phillips head—also known as crosshead— driver is another basic driver you should keep in your tool kit. The Phillips screwdriver features an angled, cross-shaped tip.

Unlike the slotted screwdriver tip, which can easily slip out of the screw head during use, Phillips screwdrivers fit into the Phillips screw head snugly. Only when the screw reaches a specific torque limit does this screwdriver type "cam out" or slip out of the head.

You will find Phillips-head screws across various applications, ranging from basic appliances to Ikea furniture pieces to intricate electronics.

Keeping this type of screwdriver in your toolbox is a smart idea whether you use tools frequently or only need to tighten the occasional kitchen cabinet.

Phillips Head

Photo Credit: Wera

Torx

The Torx screwdriver—also known as the "star" or Torx security version screwdriver—is popular in the automotive and security business.

This screwdriver features a trademarked six-point-star screw head that gives the tool exceptional torque tolerance.

You can find Torx screws in complex, technical applications, such as cars, motorcycles, bicycles, computers, and small electronics. In recent years, Torx screws have also become more prominent in the construction industry.

Torx screwdriver

Photo Credit: AR Tools

Hex (Allen Wrench)

The Hex screw drive—also known as the hex key or Allen wrench— features a hexagon-shaped screwdriver head that fits into large screws and driving bolts that have a hexagonal recess.

If you have ever assembled Ikea furniture, you probably received a small, L-shaped Allen wrench or hex key in your box of supplies.

The hex screwdriver is an alternative to the hex key that features a traditional wide handle and skinny driver head, making it more comfortable to hold than small metal hex keys.

You can often find hex screws in bicycles, appliances, and simple furniture.

HEX Screwdriver Bit

Photo Credit: Urban EDC Supply

Square Head

The squarehead, or Roberston, screwdriver is one of the lesser-known standard screwdrivers on our list. This screwdriver features a square-shaped tip that fits snugly into square-socket screw heads.

Squarehead screwdrivers are more prevalent in Canada than in the U.S., but you may still need to have access to one from time to time.

These screwdrivers have higher torque than any other standard screwdriver type, and they have begun to infiltrate the American automotive and furniture markets in recent years.

Roberston Screwdriver

Photo Credit: Greg Faulconer

Specialized Screwdrivers

Now that we have examined the five most common types of screwdrivers, it's time to dive into the lesser-known screw head types and their accompanying screwdrivers.

You don't necessarily need to keep each of these screwdrivers in your toolbox to become a master craftsman.

But, if you're attempting to build the ultimate tool chest, you should be aware that they may become necessary for specific applications.

Frearson

Our first specialized screwdriver type is the Frearson screwdriver. This screwdriver features a pointed, cross-shaped tip that resembles the Phillips head at a glance. However, the Frearson has sharper edges, and its intersections come closer to a 90-degree angle.

Because the Frearson has a sharper, more angular point than the Phillips, it also allows for higher torque than its standard counterpart. You can sometimes use Frearson drivers to tighten Phillips screws, especially if the screw is slightly larger than the Frearson screwdriver tip.

One advantage of the Frearson screwdriver is that a smaller Frearson bit can adequately screw heads that are several sizes larger. As a result, you only need to keep one Frearson screwdriver bit on hand.

You will often find Frearson screws in applications that require precision and detail, such as marine hardware.

Frearson Screwdriver

Photo Credit: Josh Vincent

Clutch Head

Clutch head screwdrivers feature a bow-tie-shaped tip that is wide on both ends and tapers into a narrower middle. The Type A clutch head features a circular recess in the middle, while the Type G head resembles a bow-tie or butterfly more closely.

Manufacturers designed clutch head drivers to fit flathead and specific bowtie-shaped screws. You may see bowtie screws in mobile homes, recreational vehicles, or older automobiles.

You may also see a security version of clutch screws in public locations, such as bus stations or prisons. These screws use a unique tightening mechanism that is challenging to remove without the right clutch screwdriver.

Clutch Head Screwdriver

Photo Credit: Columbia Furnace Garage

Japanese Industrial Standard

Japenese Industrial Standard (JIS) screws are common in Japanese-made products, so keeping one in your toolkit may come in handy sooner rather than later. JIS screwdrivers resemble Frearson or Phillips screwdrivers with their thin, cross-shaped tips.

However, unlike Phillips drivers, JIS screwdrivers do not cam out when they reach a specific torque.

Some contractors have begun using JIS drivers in place of Phillips ones to avoid damaging Phillips screw heads when twisting with excessive force.

To distinguish themselves from Phillips screws, JIS screws often have a small dot next to their cross slot.

Japanese Industrial Standard Screwdriver

Photo Credit: Rome and Stuff

Tri-Wing

The tri-wing screwdriver features a pinwheel-shaped tip with three linear wings extending out from a triangle.

You may see these screws in the aerospace, commercial aircraft, or consumer electronics industries.

Tri-wing screwdrivers can fit triangular-slotted and Opsit screws. To unscrew an Opsit screw, you will need to turn the tri-wing clockwise rather than counter-clockwise.

Tri Wing Drivers

Photo Credit: Nostalgie Gamer

Micro Tri-Angle

The tri-angle screwdriver resembles its name, featuring a triangular recess in the tip. You can find triangular screws in a wide range of toys, electronics, and appliances, but you may also see them in more specific applications, like elevators and golf clubs.

Tri-angle drivers are relatively uncommon, as most people use hex drives to grip triangular screws.

As a result, we don't recommend adding this driver to your collection unless you encounter triangular screws frequently or want more control than a hex drive can offer.

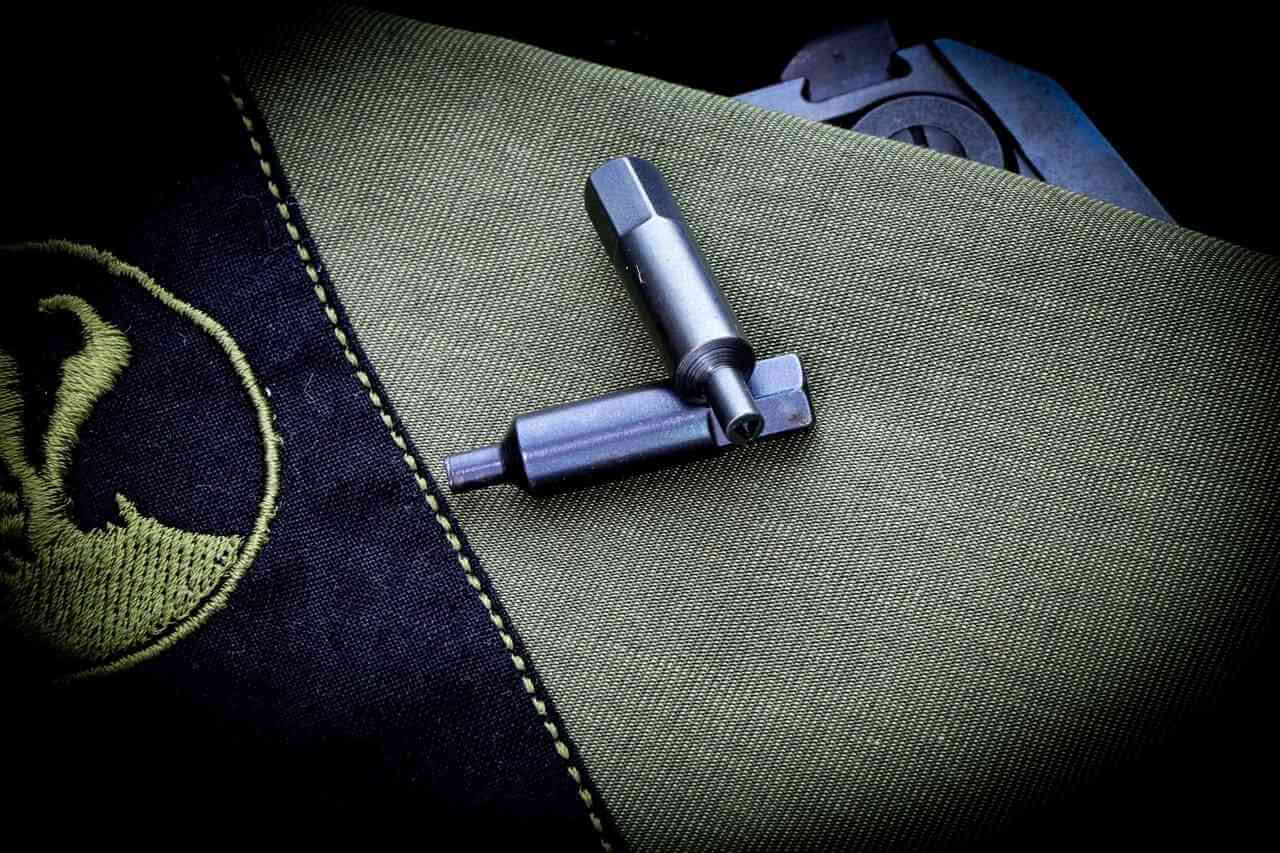

Micro Tri Angle Screwdriver bit

Photo Credit: EKnives

Tri-Point

Tri-point drivers feature a blade with three points that create a Y-shape head on the tip of the driver.

Tri-point screws are popular in consumer electronics, and you can typically find them in smaller Apple and Nintendo products, such as iPods or handheld gaming systems.

However, you will rarely see these screws on larger electronic devices.

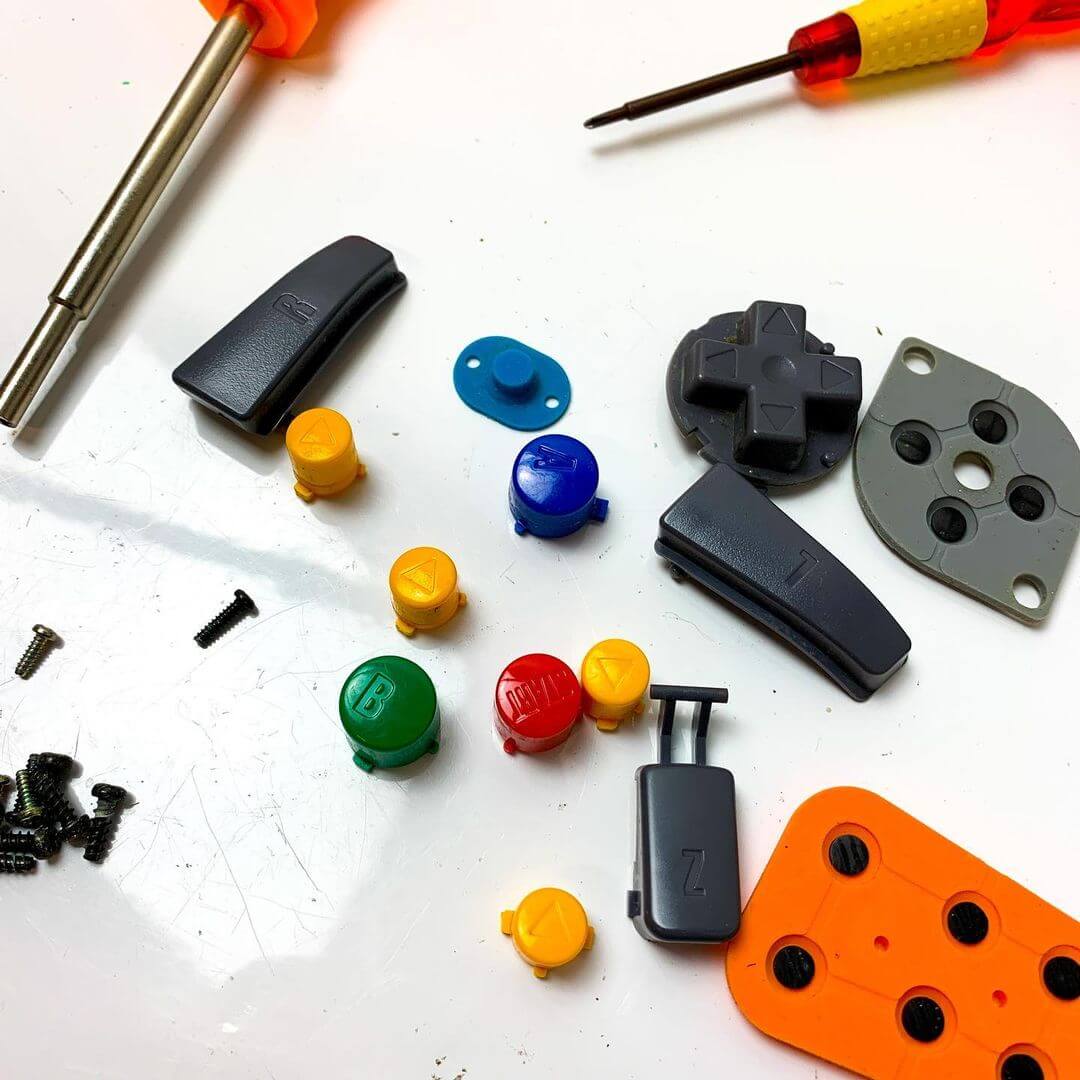

Tri Point Screwdriver

Nut Driver

A nut driver (or hex socket screw drive) is similar to a hex driver in that its tip is hexagonal. However, this screw drive type contains a socket instead of a tip or blade, so you can use it the same way you would a socket wrench.

If you remove recessed bolts frequently, you may appreciate having a nut driver on hand instead of a traditional socket wrench.

Socket wrenches tend to be L-shaped, making it difficult to reach and unscrew recessed bolts in awkward locations with a conventional wrench.

However, the nut driver's large, linear handle allows you to navigate tight areas with little clearance.

Hex Socket Screwdriver

Photo Credit: Tekton

Pozidriv

Pozidriv (or "Pozi") screwdrivers feature a tip design that resembles a snowflake. This screwdriver tip includes a cross-shaped blade with an "X" shape overlaying the cross tip.

Like several other types of screwdrivers on our list, the Pozidriv resembles a Phillips screwdriver to an extent.

However, you should not try to use these two drivers interchangeably, as their designs are different enough that you could accidentally damage the screw by using the wrong driver.

Pozidriv Screwdrivers

Photo Credit: Nuline Tools

Spanner

Spanner (or "snake-eyes") screwdrivers may be the most unique-looking types of screwdrivers on our list. These screwdriver tips resemble a tuning fork, as they have two sharp tines extending out of the shank.

Spanner screws are identifiable by the two small holes on their heads. Common uses for spanner screws are in bus stops, elevators, subways, and public restrooms.

You can often find spanner screws in applications that need to be secure and tamper-proof, as pedestrians are unlikely to be able to remove these screws without a specialized type of screwdriver.

Because these screws are challenging to remove, they fall into the "tamper-resistant" screw category. You may see spanner screwdrivers under informal names such as pig nose, twin hole, or drilled head drivers.

Screwdriver Set

Photo Credit: KC Tools

In Conclusion

Unless you repair a wide range of products every day, you won't need to add all of these screwdriver types to your tool kit.

A few standard screwdrivers and one or two specialized ones will suit your everyday needs, as you're still going to need a bunch of different types of hammers, pliers, and other hand tools.

Although, knowing the different types of screwdrivers you may encounter will help you identify the hand tools you need to pick up before beginning a new project.

It will also prevent you from using the wrong driver in a screw, saving you time and money in the long run.
